Startseite /Produkte/androides Motherboard/Embedded Electronic Scale Board With USB 2.0/ OTG Interface RK3288 Embedded System Motherboard

Embedded Electronic Scale Board With USB 2.0/ OTG Interface RK3288 Embedded System Motherboard

1 Stück Probe wird unterstützt.
MOQ
$40-$60
Preis
Embedded Electronic Scale Board With USB 2.0/ OTG Interface RK3288 Embedded System Motherboard
Eigenschaften Galerie Produkt-Beschreibung Bewertungen & Rezensionen Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Produktname: Eingebettete elektronische Waagenplatine
CPU: RK3288
GPU: MALI-T764
Erinnerung: 2G/4G LPDDR3 Option
EMMC: Die EMMC16G/32G/64G/128G-Option
Videoausgabe: Unterstützt LVDS (dual8), EDP
Audioausgabe: Stereo, unterstützt Dolby-Soundeffekt
Ethernet: Unterstützung 100 MHz
Hervorheben:

RK3288 embedded system motherboard

,

USB 2.0 OTG embedded board

,

electronic scale embedded motherboard
Grundinformation
Herkunftsort: China
Markenname: JEWELLED
Modellnummer: JLD-P06
Zahlung und Versand AGB
Verpackung Informationen: 1 Stück/Luftpolsterbeutel, richtige Menge im Karton
Lieferzeit: 3-5 Werktage für die Probe
Zahlungsbedingungen: T/T
Versorgungsmaterial-Fähigkeit: 100.000/Monat
Produkt-Beschreibung
Embedded Electronic Scale Board With USB 2.0/OTG Interface RK3288
This high-performance embedded system motherboard features the RK3288 quad-core 64-bit Cortex-A17 processor with maximum clock speeds up to 1.8GHz. Designed specifically for commercial weighing applications, it delivers efficient computing capabilities with low power consumption, ensuring real-time processing of weighing data acquisition, unit conversion, and data storage tasks.
Key Features
Specification Details
Product Name Embedded Electronic Scale Board
PCB Size 100mm * 80mm
Memory 2G/4G LPDDR3 Option
Power Supply DC12V3A Input
Wireless Connectivity 2.4G/5G WiFi BT
Touch Panel Interface I2C /USB Interface TP
Technical Capabilities
Equipped with Mali-T764 GPU, this motherboard supports advanced graphics display requirements and smoothly runs weighing data visualization interfaces, making it ideal for high-definition touch screen operations. The comprehensive interface selection includes RS485, USB, and Ethernet connectivity for versatile integration.
Development & Compatibility
Supports mainstream embedded operating systems including Linux and Android, with complete SDK development kits and technical documentation provided for secondary development and feature customization. Enables flexible integration of personalized functions such as weighing data statistical analysis, order management, and traceability systems.
Application Scenarios
Specifically engineered for embedded electronic scale applications with focus on commercial metrology. Delivers precise measurement, stable operation, and flexible expansion capabilities, fully compatible with commercial super checkout scales across multiple industries including supermarkets, chemicals, and logistics.

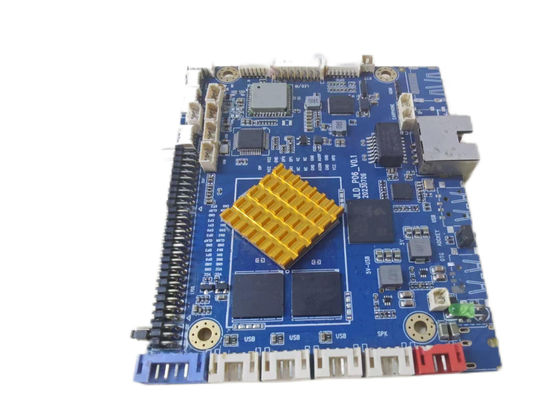

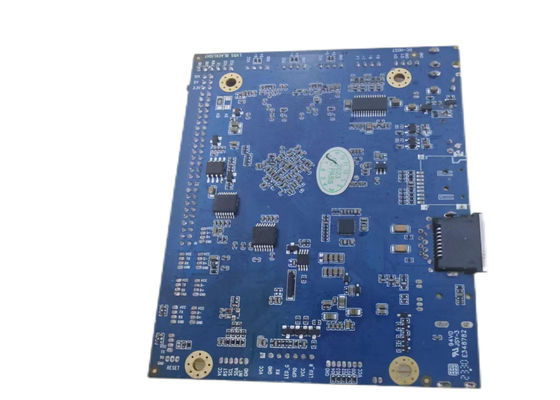

Product Visuals
Embedded Electronic Scale Board With USB 2.0/ OTG Interface RK3288 Embedded System Motherboard 0
Embedded Electronic Scale Board With USB 2.0/ OTG Interface RK3288 Embedded System Motherboard 1
Embedded Electronic Scale Board With USB 2.0/ OTG Interface RK3288 Embedded System Motherboard 2
Embedded Electronic Scale Board With USB 2.0/ OTG Interface RK3288 Embedded System Motherboard 3
Customer Feedback
Embedded Electronic Scale Board With USB 2.0/ OTG Interface RK3288 Embedded System Motherboard 4
Frequently Asked Questions
What is the brand name of the POS Motherboard product?
The brand name is JEWELLED.
What is the model number of the POS Motherboard product?
The model number is JLD-P06.
Where is the POS Motherboard product manufactured?
The product is manufactured in China.
What is the minimum order quantity for the POS Motherboard product?
The minimum order quantity is 1pc.
What are the payment terms for purchasing the POS Motherboard product?
The payment terms are T/T.
